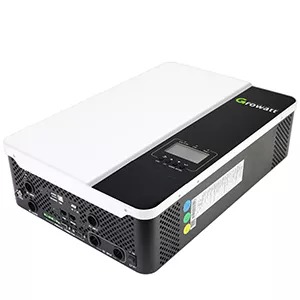

In stocks!Growatt SPF5000ES 5KW off grid inverter MPPT solar inverter with parallel wire and wifi mould for solar system

- 2022-11-28 -

This is a multifunctional 230V off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This Hybrid inverter can work with 48V battery or without batteries.

Can be accessed to a variety of household appliances and office loads, power tools, industrial equipment, and electronic audio and video equipment, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads
Important Note:
1. This is a wide voltage Hybrid inverter, The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires

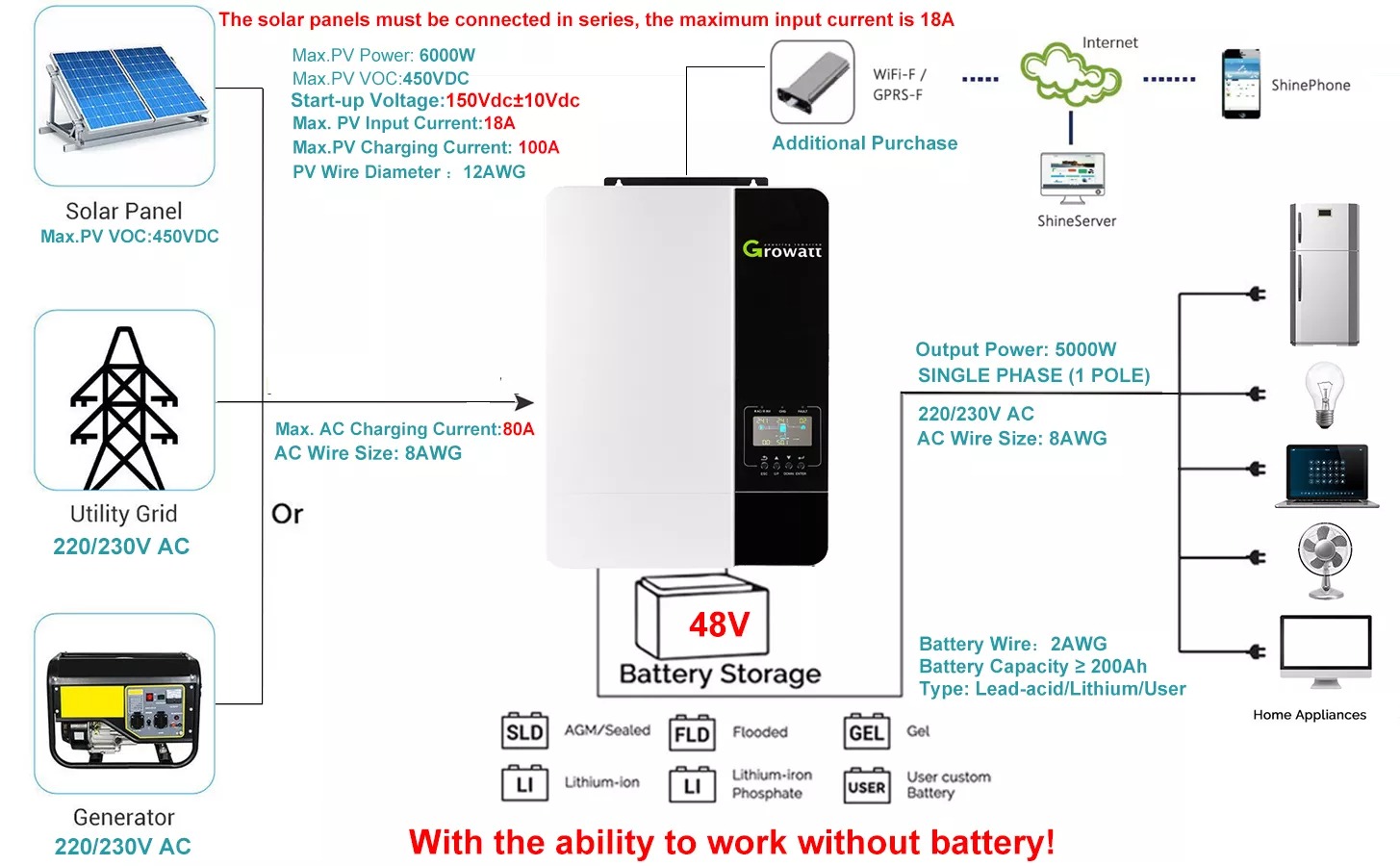

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid.

1. Rated power 5KW, power factor 1 MPPT ranges 120V~430V, 450Voc
2. High frequency inverter with small size and light weight Pure sine wave AC output
3. Battery charging mode and load working mode can be set
4. Adjustable inverter charging and output time

5. Solar and utility grid can power loads at the same time With CAN/RS485 for BMS communication
6. With the ability to work without battery
7. Parallel operation up to 6 unit (only with battery connected)

8. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.(optional, Additional purchase required )

WARNING! Be sure that all inverters will share the same battery bank. Otherwise, the inverters will transfer to fault mode.
Parallel operation up to 6 unit (only with battery connected)
This inverter can be used in parallel with two different operation modes.

1. Parallel operation in single phase with up to 6 units.
2. Maximum 6 units work together to support 3-phase equipment. Four units support one phase maximum.

WARNING!

All inverters must be connected to the same batteries and ensure each group of cables from the inverters to the batteries in the same length.
Important Note:
The ground and neutral conductors of the SPF 5000 ES are not connected together and the enclosure does not become part of the ground return.

Test Methods: Use the multimeter’s beep gear to measure whether the neutral wire and the ground wire are connected together, if they are connected together, it will make a “beep” sound. If there is no sound, there is no connection.

Battery charging mode and load working mode can be set
