High-quality battery less Hybrid Solar Panel System Solar Panel 600KW Solar Power support lithium battery

- 2022-11-08 -

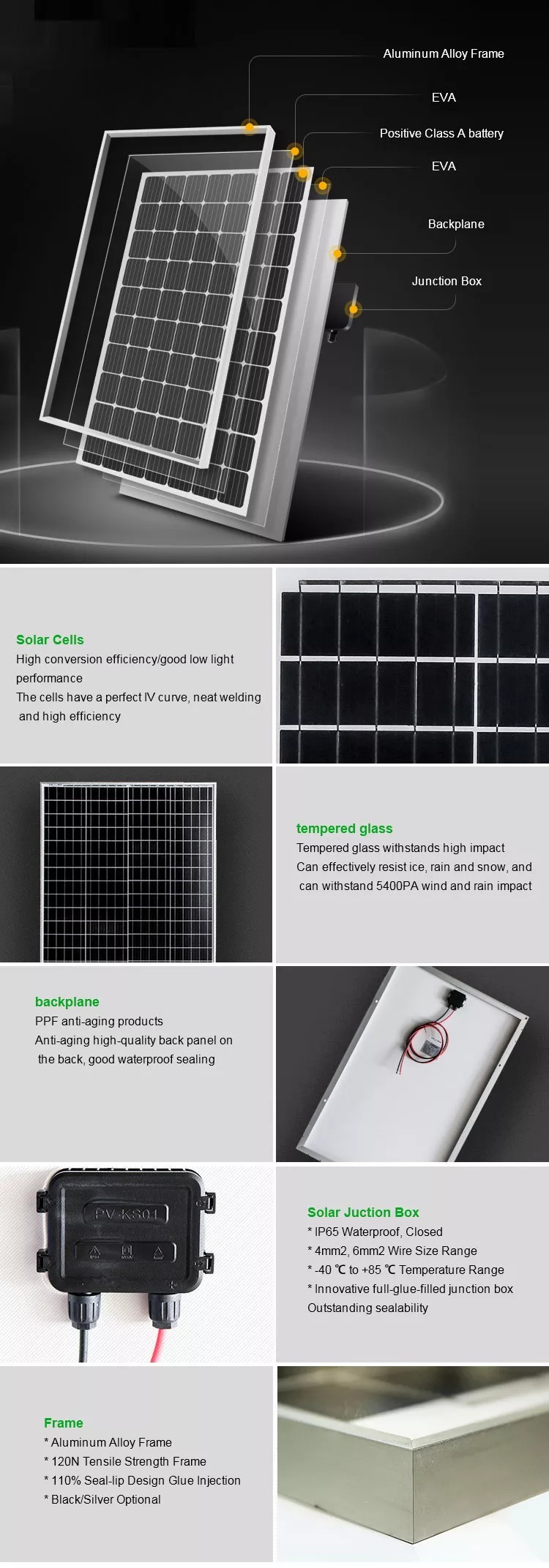

Mechanical Parameters
Solar Cell(Type/Size)
MONO(182mm)
Solar Cells
Number60Pcs(6×10)
Dimension
1540×1134×35mm
Weight
18.8Kg/Pcs
Tempered Glass
3.2 mm High Permeability Coated
Frame
Anodized aluminum alloy
Junction Box
IP67、3* bypass diode
Cable
4.0mm2,(+)1000mm/(-)1000mm
Connector
Original MC4/Compatible MC4
Mechanical Load
Front 5400PA/back 2400PA
Packing
Module
TypeSP360M-60
Carton Size
1560×1160×85mm
Number
2Pcs/Ctn
Weight
38Kg/Ctn
Volume
0.153Cbm/Ctn
20GP Container
386Pcs
40HQ Container
902Pcs
