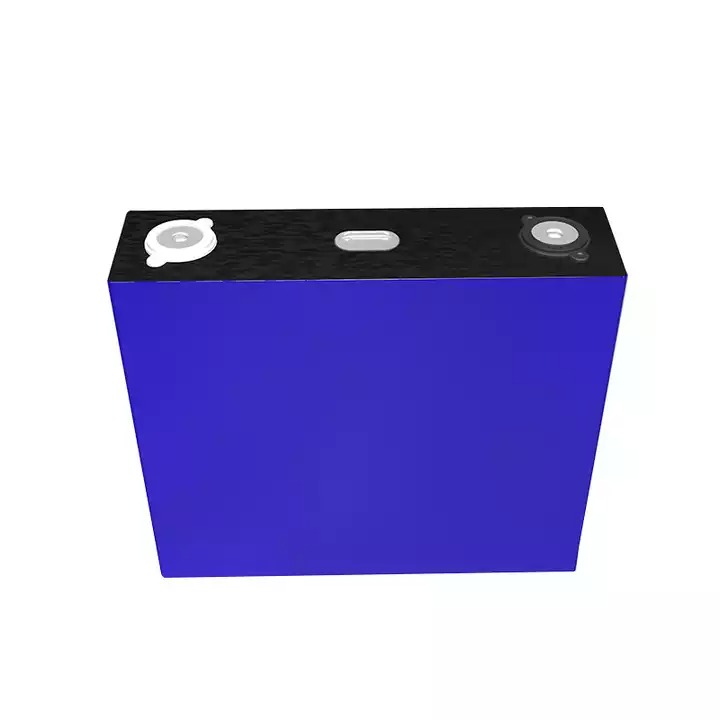

Grade A Stock 3.2V 100ah Lithium Lifepo4 Battery Cell 4S12V 8S24V 16S48V 32S96V 100AH Battery Packs
- 2022-12-14 -
|
Normal capacity
|
100ah
|
|
Normal voltage
|
3.2V Battery terminal included
|
|
Standard Charging voltage
|
3.65V
|
|
Internal resistance
|
≤0.4Ω
|
|
Standard charge method
|
0.5C constant current charge to 3.65V for cell
|
|
Standard discharge current
|
0.5C
|
|
Max discharge current(continues)
|
1.0C
|
|
Max discharge current(Long pulse)
|
2.0C
|
|
Max discharge current(Short pulse)
|
3.0C
|
|
Weight
|
2.85kg/cell
|
|
Cell dimensions |
Thickness: 48mm
Length: 173.9mm
Height: 132.2mm |
|
Cycle life
|
3000 times
|
