Fast Production EV CAN-BUS 6.6KW on board EV charger with CAN Communication whole sale

- 2022-12-15 -

Product Description

Fast Production EV CAN-BUS 6.6KW on board EV charger with CAN Communication whole sale

Brief introduction

OBC(on board charger) and its charging system convert the AC power of the power grid into DC power that can be accepted by the power battery to realize the function of charging the power battery.

Output Characteristics

Items                                               Rated Value


Environmental Parameters

Accuracy of Output Volt
1%
Working Temperature
-35℃~ +85℃
Accuracy of Output Current
3%
Storage Temperature
-55℃~ +100℃
Ripple Factor of Output Volt
1.5%
Relative Humidity
5% ~ 95%
Maximum DC Output Power
1800W, 3300W, 6600W
Altitude
3000m
Efficiency
 ≥94%
Cooling
Air Cooling and Water Cooling
Power Factor
≥0.99
Environmental Enclosure
IP67

Protection Feature

1.Output over voltage protection
2.Output over current protection
3.Output short circuit protection
4.Input under voltage protection

5.charger over heat protection

6.battery over heat protection

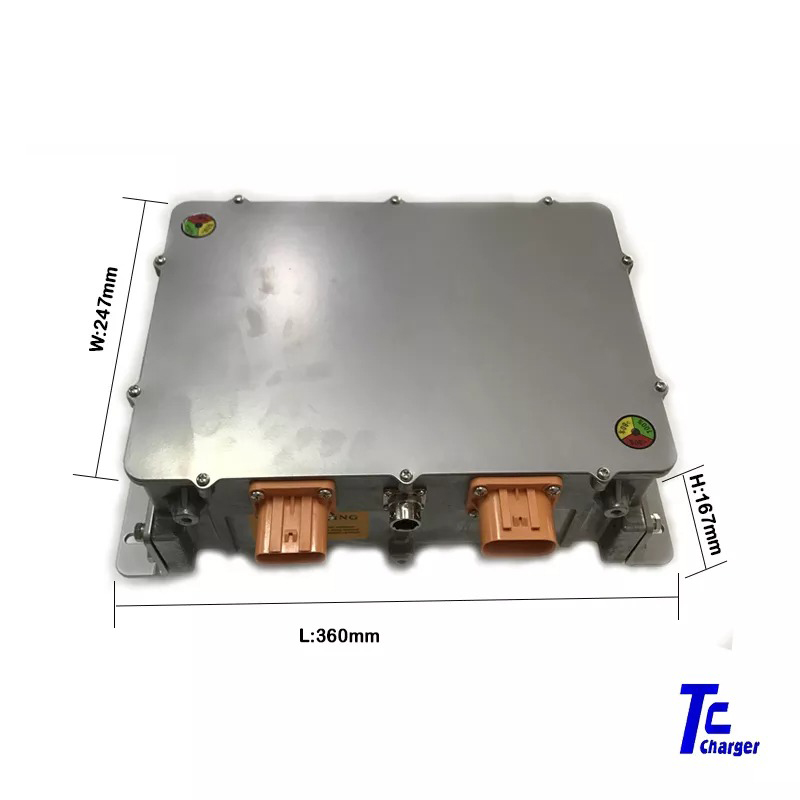

Drawing of charger

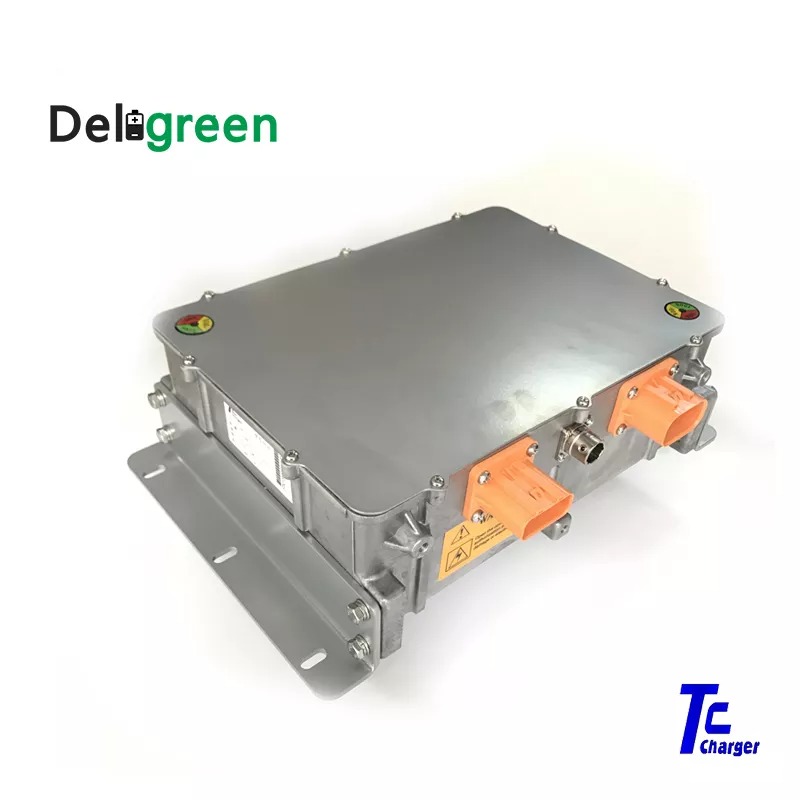

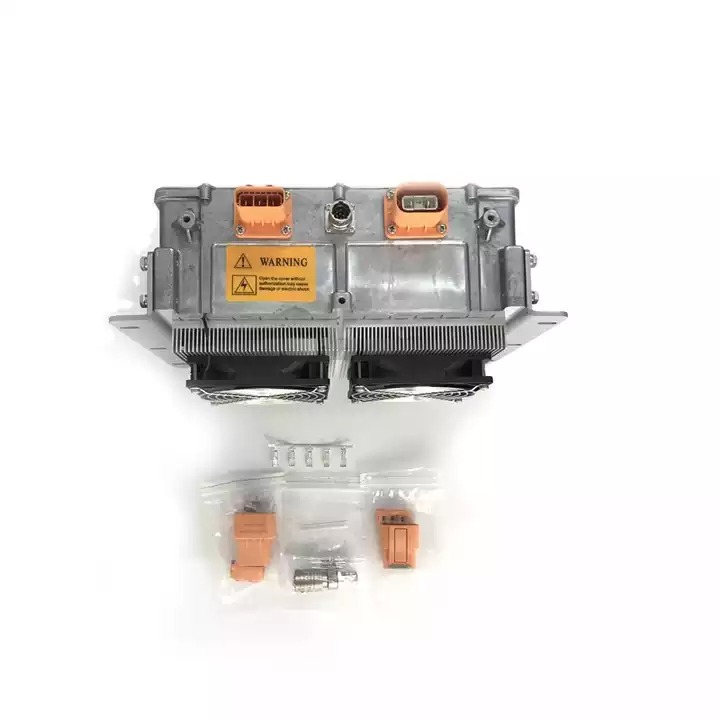

Detailed Images

Models
MODEL
Installation Size
N.W
1.8kW OBC
203mm X 103mm X 125mm (L*W*H)
4.5kg
3.3kW OBC
240mm X 150mm X 156mm (L*W*H)
7.5kg
6.6kW OBC
360mm X 247mm X 167mm (L*W*H)
14.5kg
3.3kW CDU
Customized
/
6.6kW CDU
Customized
/
