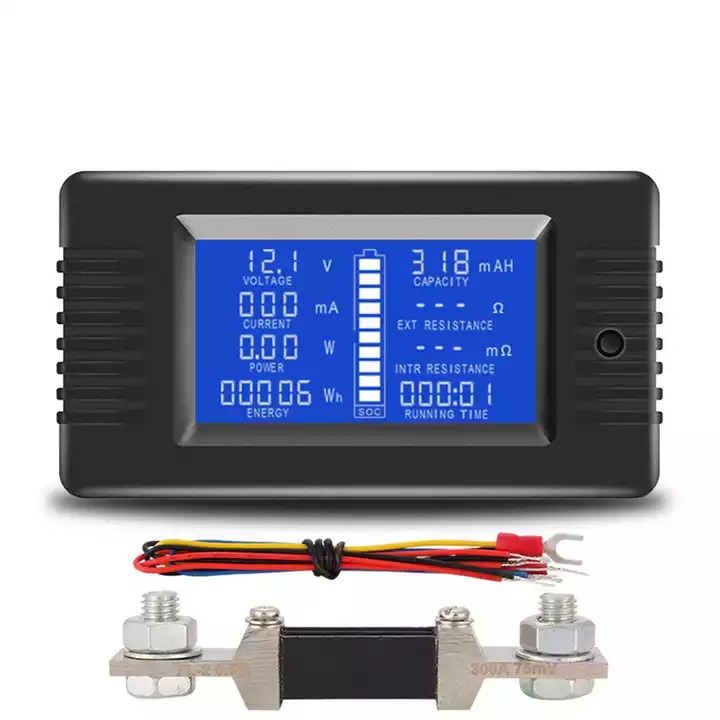

Factory sale PZEM-015 0.05~200V 50A Discharge with Shunt Solar Power Capacity Volt Battery Meter
- 2022-12-16 -
|
Parameter
|
Test Range
|
Resulation
|
Measurement accuracy
|
||
|
Voltage
|
0-200V. (when the test voltage is <8V, please use the independent power supply mode)
|
0.01V
|
1%
|
||
|
Current
|
0-50A
|
1mA
|
1%
|
||
|
Power
|
0-2000W
|
0.01W
|
1%
|
||
|
Impedance
|
0-1000Ω
|
0.1Ω
|
|||
|
Internal Resistance
|
0-999mΩ
|
1mΩ
|
|||
|
Capacity
|
0-1000AH
|
1mAH
|
1%
|
||
|
Dump energy
|
Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
|
||||
|
Accumulate energy consumption
|
0~9999kWh
|
1Wh
|
1%
|
||
|
Running time
|
0 ~ 999 hour(without load the time will not accumulate)
|
||||
