Product Description
Factory sale professional 16A 25A 1.8KW OBC Charger with CAN or not on board TC Charger for EV
Brief introduction
OBC(on board charger) and its charging system convert the AC power of the power grid into DC power that can be accepted by the power battery to realize the function of charging the power battery.
|
Output Characteristics
Items Rated Value
|
Environmental Parameters |
||
|
Accuracy of Output Volt
|
1%
|
Working Temperature
|
-35℃~ +85℃
|
|
Accuracy of Output Current
|
3%
|
Storage Temperature
|
-55℃~ +100℃
|
|
Ripple Factor of Output Volt
|
1.5%
|
Relative Humidity
|
5% ~ 95%
|
|
Maximum DC Output Power
|
1800W, 3300W, 6600W
|
Altitude
|
3000m
|
|
Efficiency
|
≥94%
|
Cooling
|
Air Cooling and Water Cooling
|
|
Power Factor
|
≥0.99
|
Environmental Enclosure
|
IP67
|
Protection Feature
1.Output over voltage protection
2.Output over current protection
3.Output short circuit protection
4.Input under voltage protection
5.charger over heat protection
6.battery over heat protection
Drawing of charger

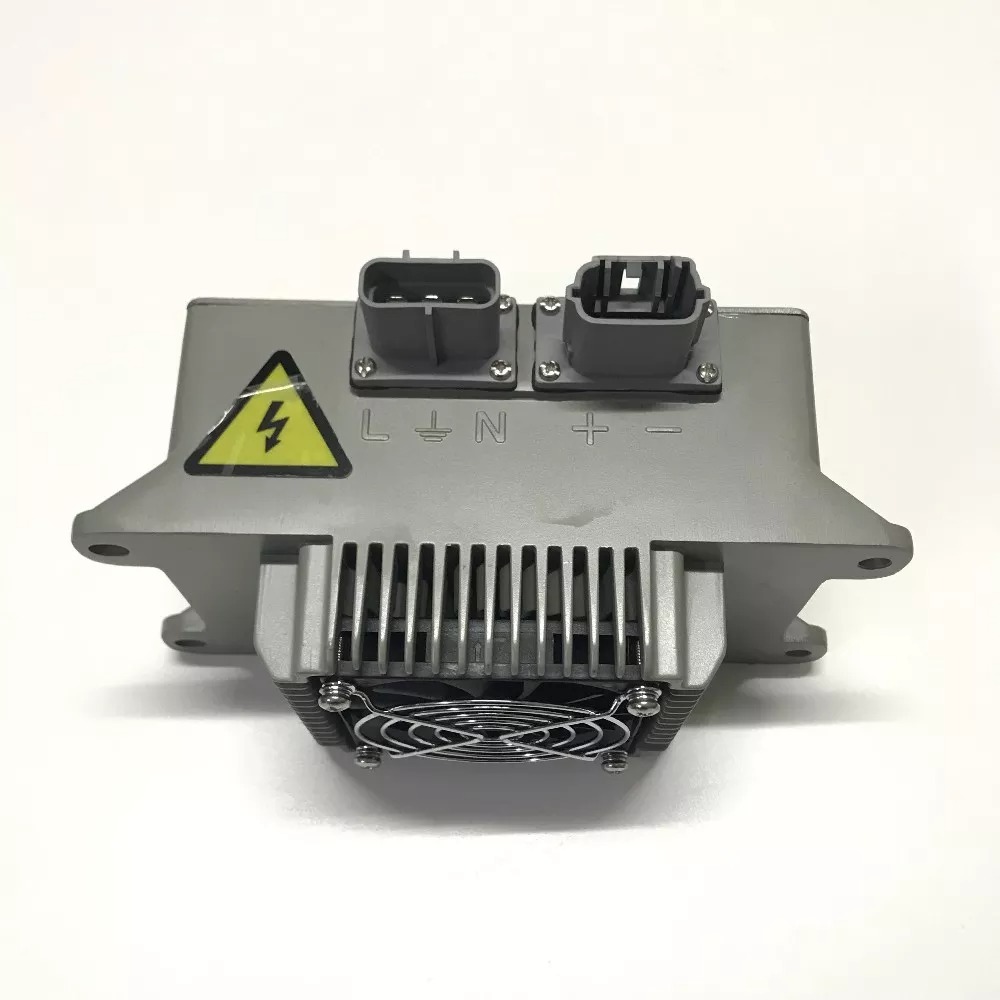

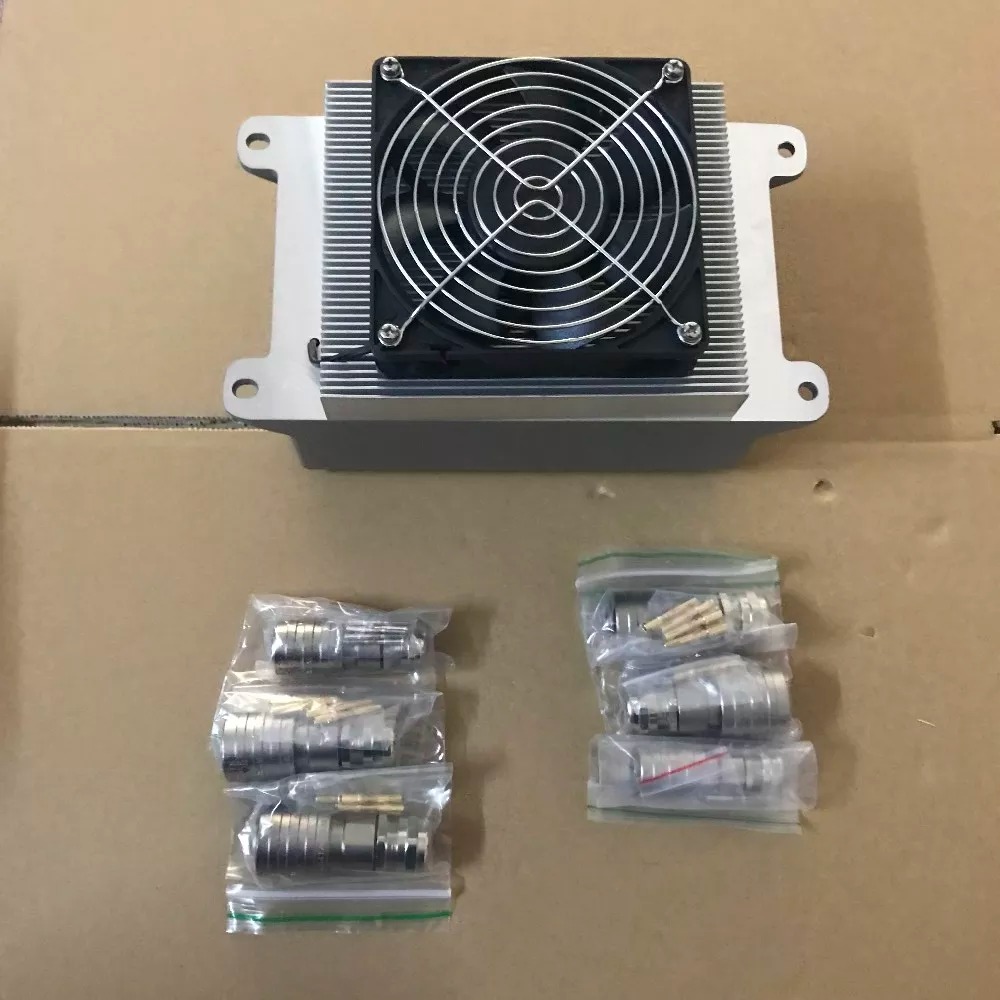

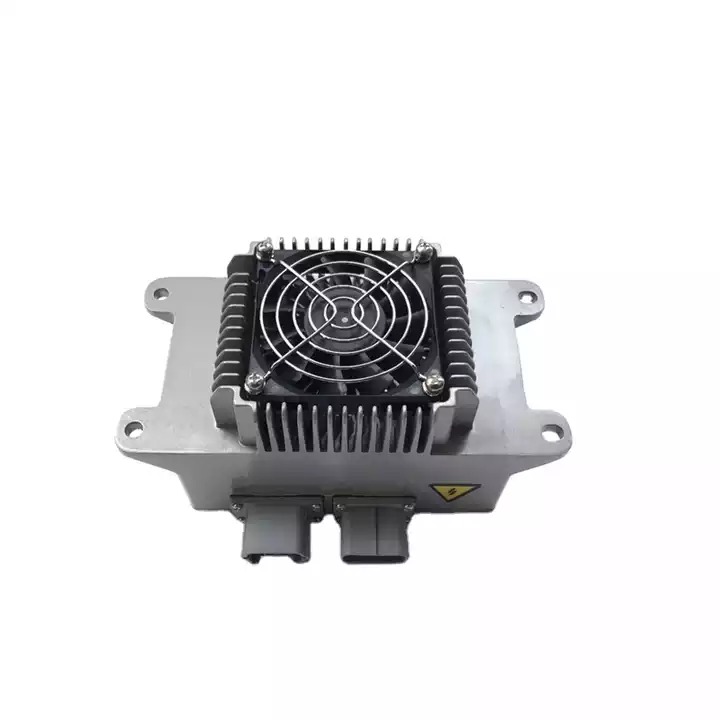

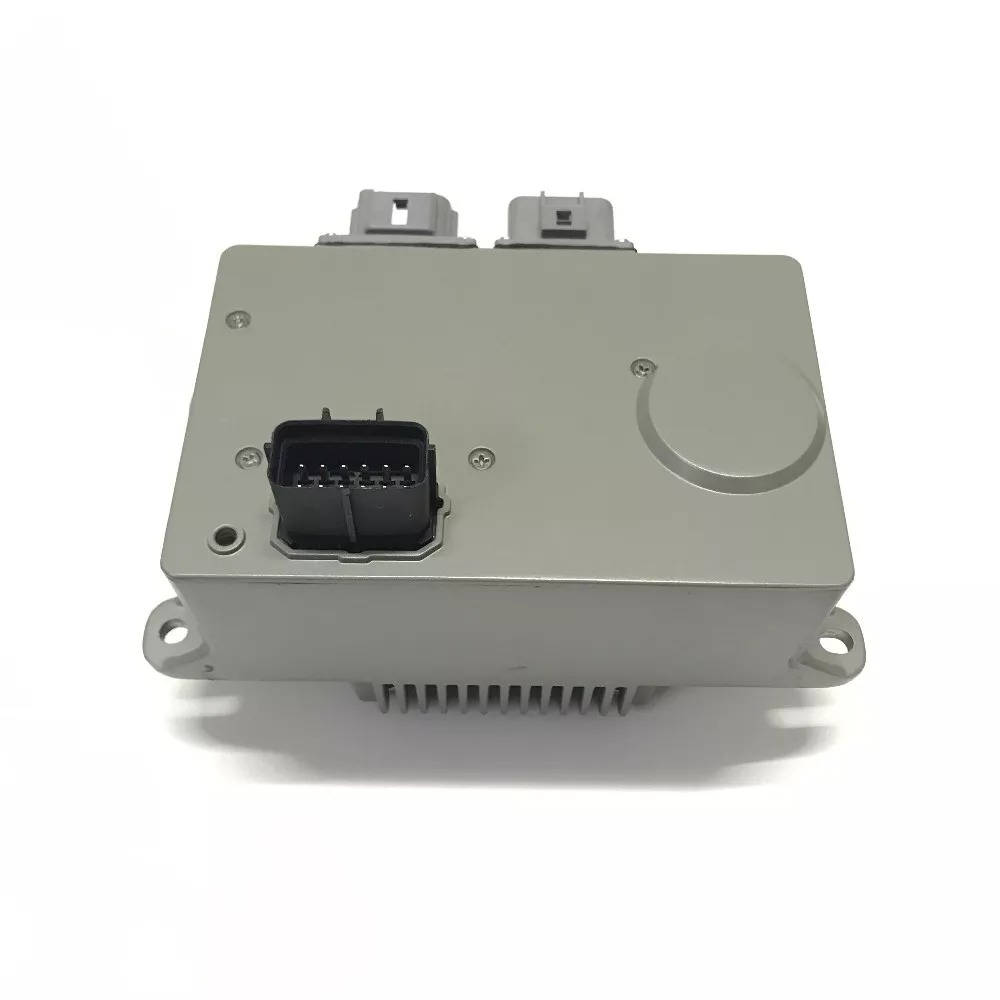

Detailed Images
