Energy Transfer/Dynamic BMS System 6S 18V Lithium battery balancer module

- 2022-12-16 -

Product Description

Product Name
Energy Transfer/Dynamic BMS System 6S 18V Lithium battery balancer module

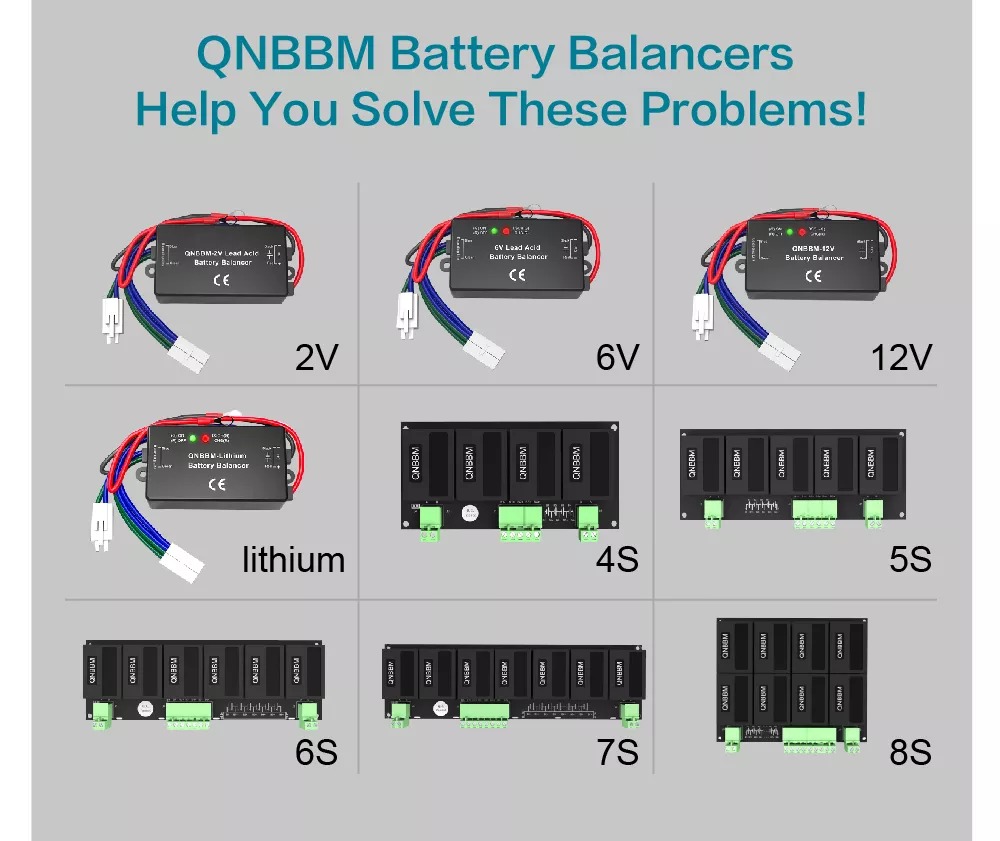

QNBBM active balancer Model
1S ,4S ,5S, 6S ,7S, 8S for lithiun battery

2V, 6V ,12V for lead acid /AGM battery
Battery capacity limited
0ah~1000ah lithium battery
Battery count limited
2S~unlimited At least balance 2 cells
Battery type limited
battery:Lifepo4,LiMnO4 etcAGM,Gell,Flooded battery and so on
Working voltage
2V~5V(2V lead acid battery and lithium battery)4V~9V (6V lead acid battery)9V~15V (12V lead acid battery)
Power consumption
< 50mW
Balance method
Energy transfer &Dynamic
Voltage difference after using the balancer
<10mv

<30mv (12v lead acid )
Voltage difference VS Balance current
300mV-1A;

1V-3A
Working efficiency when balance current is 1A
>94%
Working temperature
-40~+80℃;
Storage temperature
-40~+100℃
BMS limited
can work with BMS

Or can work independently
  • Main Features :

* 24 hours working

* Dynamic equalizing

* Energy transfer

* Maintenance and recovery

* Sharing capacity

* Simple installation

* Independent

* High safety *high efficiency &High accuracy

* Low consumption

* Flexible
