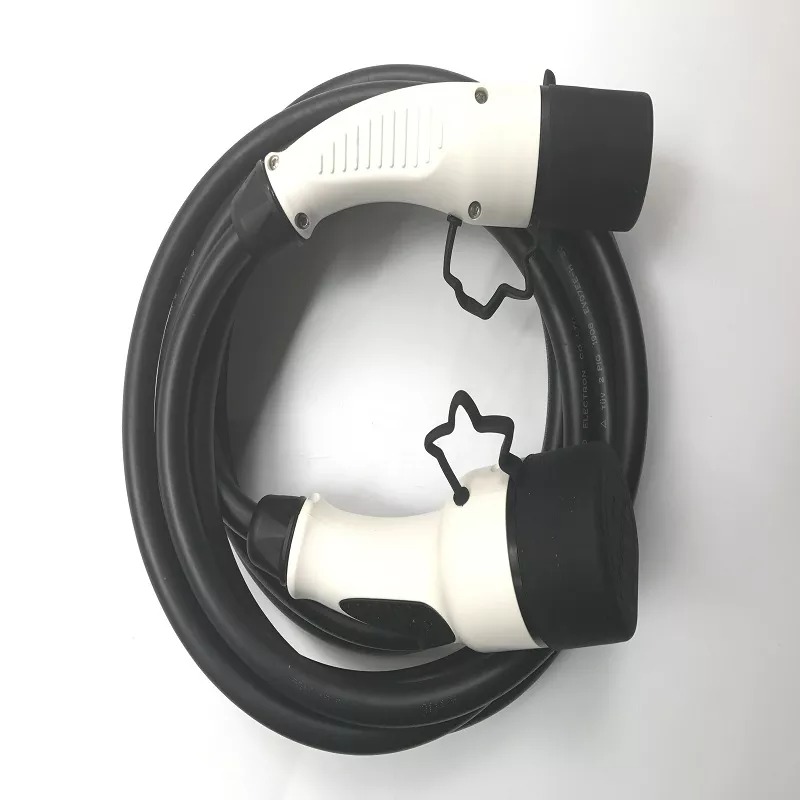

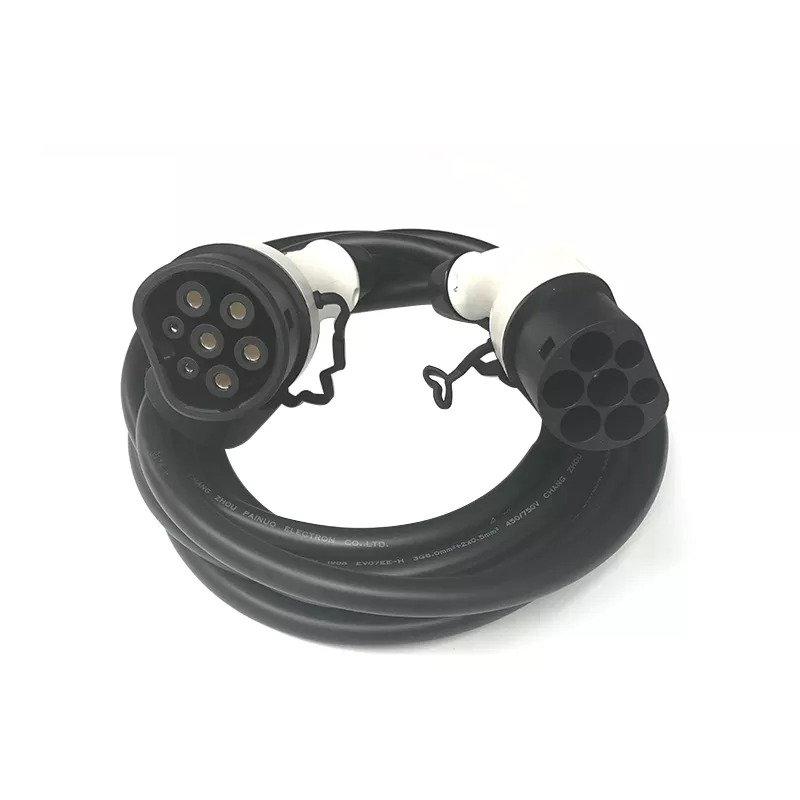

Duosida Type2 to Type2 32A EV Charging Cable 5M 1 Phase

- 2022-12-01 -

Duosida Type2 to Type2 32A EV Charging Cable 5M 1 Phase :

Promotional items in May ,only with 10pcs avaliable ,sold out then will back to normal price ,thanks!

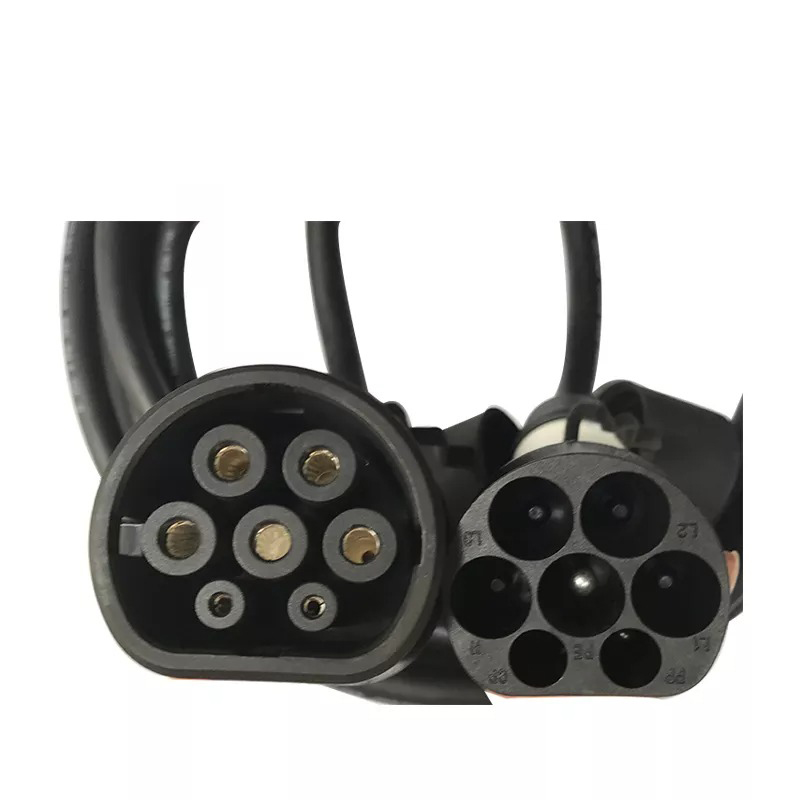

Specification of Type2 To Type2 AC Inlet socket:

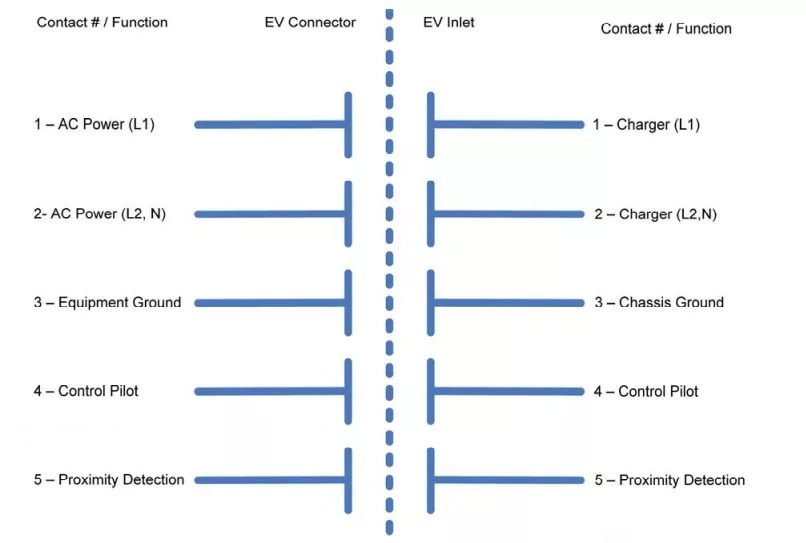

Insert arrangements and functional definition

Terminal name functional definition
L1 Live wire
L2/N Neutral wire
Equipment Ground PE
Control Pilot Control Pilot
Proximity Detection Proximity Detection



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

V2-DSS-EV16P

5

3*2.5mm2+2*0.5mm2 The length of the cable can be customized

V2-DSS-EV32P

5

3*6mm2+2*0.5mm2

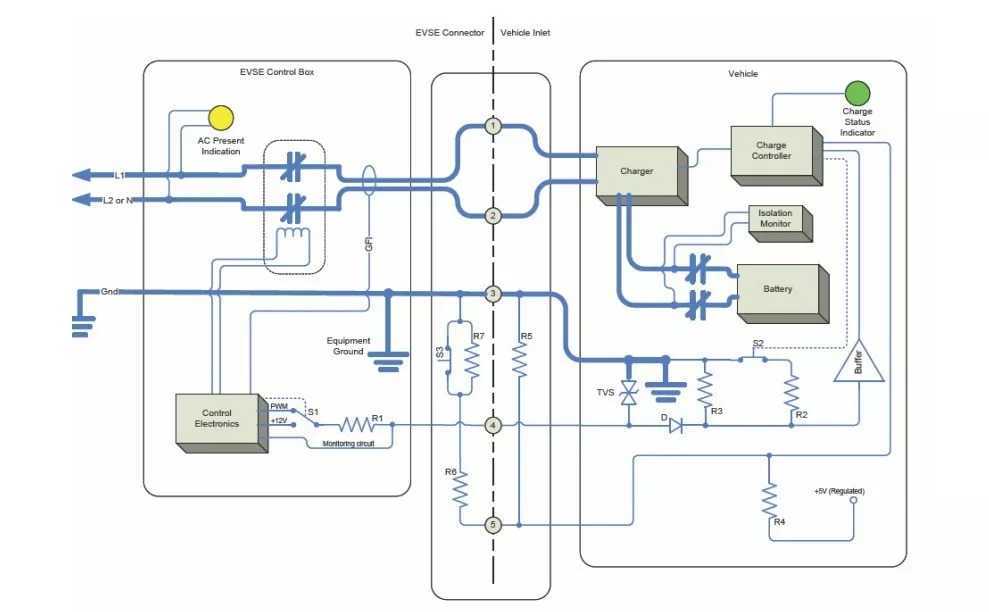

Charging Coupler Interface
