Duosida 32a Power Supply Side Iec62196-2 European Standard Without Cable For Charging Station Eu Inlet Plug

- 2022-12-14 -

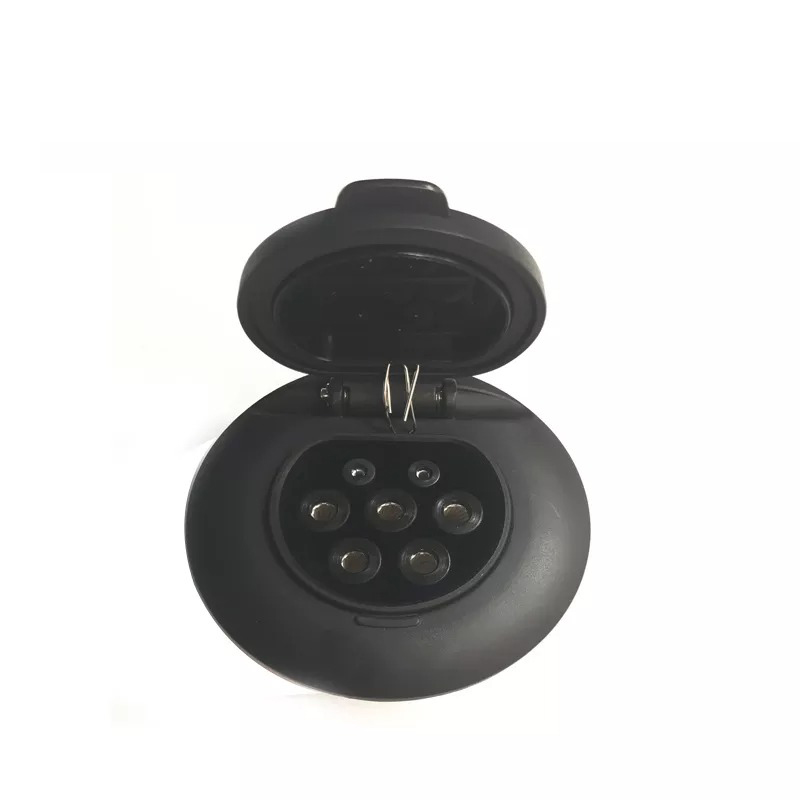

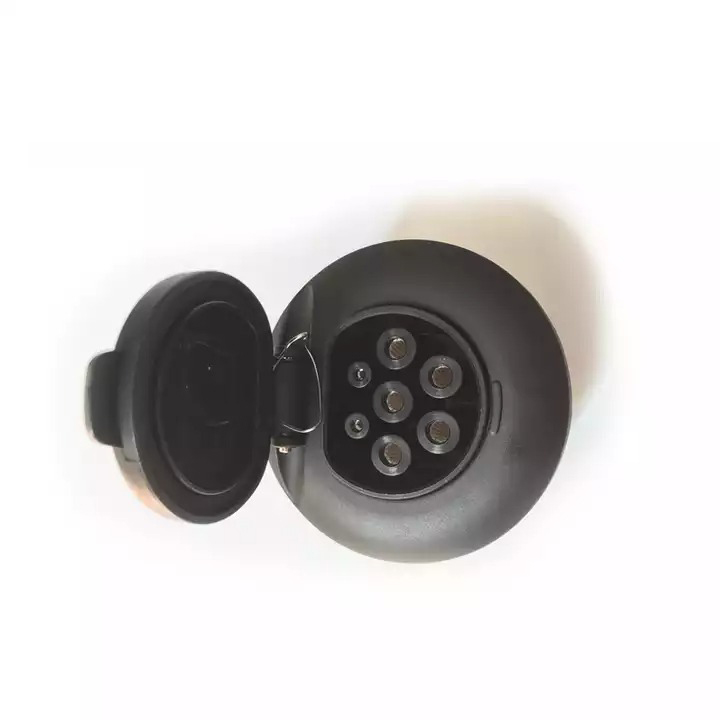

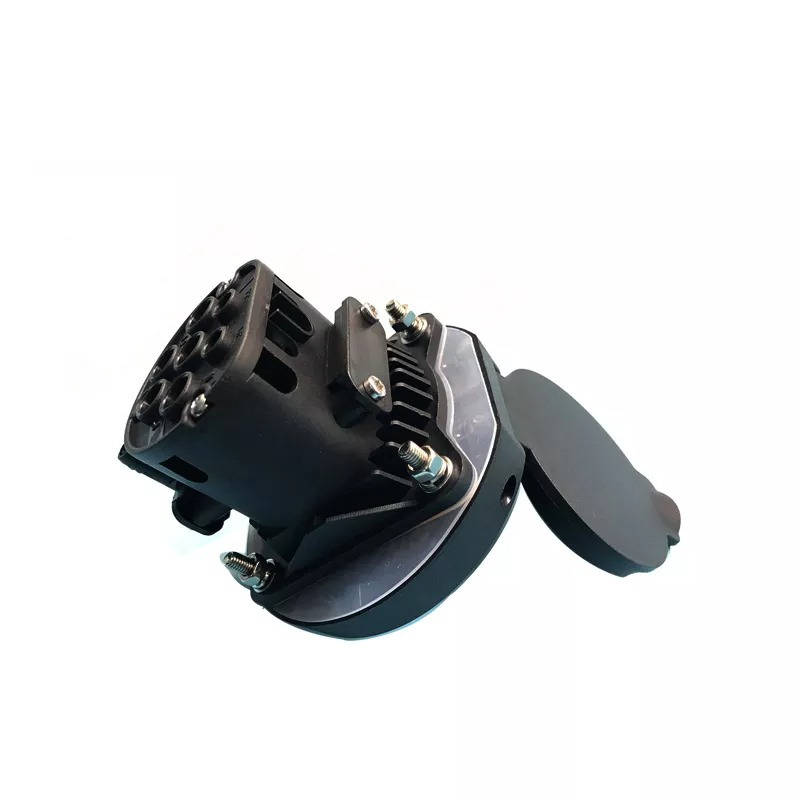

EU Duosida 32A power supply side IEC62196-2 European standard inlet without Cable EU plug for Charging Station:

Related Products:

Specification of Type2 AC Inlet socket:



Insert arrangements and functional definition





Mark

functional definition

1- (L1) AC power
2- (L2) AC power
3- (L3) AC power
4- (N) Neutra
5- (PE) PE
6- (CP) Control confirmation
7- (PP) Connection confirmation



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

DSIEC2e-EV16S

7

3*2.5mm+2*0.5mm2 The length of the cable can be customized

DSIEC2e-EV32S

7

3*6mm+2*0.5mm2



Charging Coupler Interface
