Air Cooling Electric Vehicle PFC Battery Charger Internal Thermal Sensor

- 2022-12-16 -

Product Description

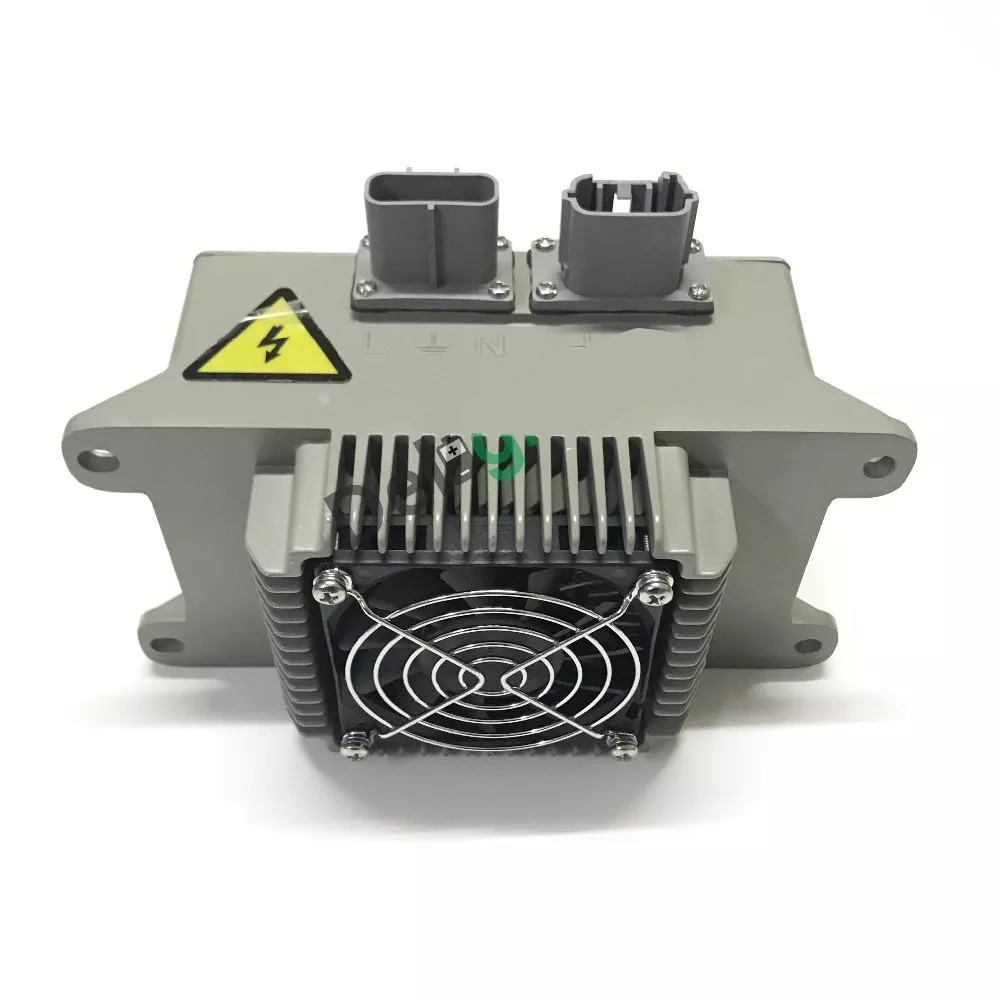

Air Cooling Electric Vehicle PFC Battery Charger Internal Thermal Sensor

Brief introduction

OBC(on board charger) and its charging system convert the AC power of the power grid into DC power that can be accepted by the power battery to realize the function of charging the power battery.

Output Characteristics

Items                                               Rated Value


Environmental Parameters

Accuracy of Output Volt
1%
Working Temperature
-35℃~ +85℃
Accuracy of Output Current
3%
Storage Temperature
-55℃~ +100℃
Ripple Factor of Output Volt
1.5%
Relative Humidity
5% ~ 95%
Maximum DC Output Power
1800W, 3300W, 6600W
Altitude
3000m
Efficiency
 ≥94%
Cooling
Air Cooling and Water Cooling
Power Factor
≥0.99
Environmental Enclosure
IP67

Protection Feature

1.Output over voltage protection
2.Output over current protection
3.Output short circuit protection
4.Input under voltage protection

5.charger over heat protection

6.battery over heat protection

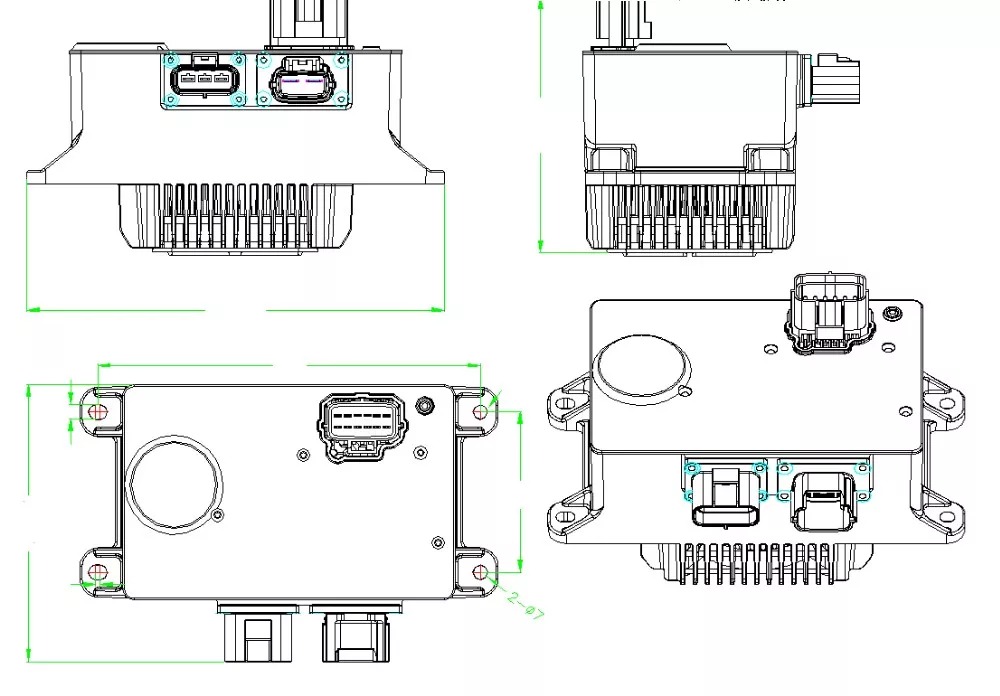

Drawing of charger
