80A 120A 200A 250A 750V Universal DC Electric Plug Supplier for Electric Vehicle Electrical Connection

- 2022-12-14 -

80A 120A 200A 250A 750V Universal DC Electric Plug  Supplier for Electric Vehicle Electrical Connection:

 Related Products:

Features  of  DC Inlet socket:

Meet GB/T 20234.3-2015 regulations and requirements

Rated current: 80A or 125A or 200A or 250A

Nice appearance, hand-held ergonomic design, easy plug

>2000MQ(DC1000V

Insulation resistance: 2000MQ2(DC1000V)

Safety pins insulated head design to prevent accidental direct·<50K

contact with staff

Terminal temperature rise: <50K

Excellent protection performance, protection grade IP55

Withstand voltage: 5000V

U94V-0Mechanical life: no-load plugin/pull out> 10000 times

Case Material: Thermoplastic, flame retardant grade 94-0

Impat of external force: can afford 1m drop and 2t vehicle run

Iver thermoplastic on the topover pressure

Environmental performance-30℃~+50°℃C

Operating temperature:-30℃~+50℃





Model Selection and the standard wiring :



Model

Number of inserts

Cable Spec.

Cable Diameter:(Orange/black)

NV3-DSD-EV80P

80A

2P(2*0.75mm)2+2P(2*0.75mm)2+3*16mm2+2*4mm2 30+1-o.5mm

NV3-DSD-EV125P

125A

2*35mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 34+1-o.5mm

NV3-DSD-EV200P

200A

2*70mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 41+1-o.5mm
         NV3-DSD-EV250P              250A 2*80mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 42+1-o.5mm

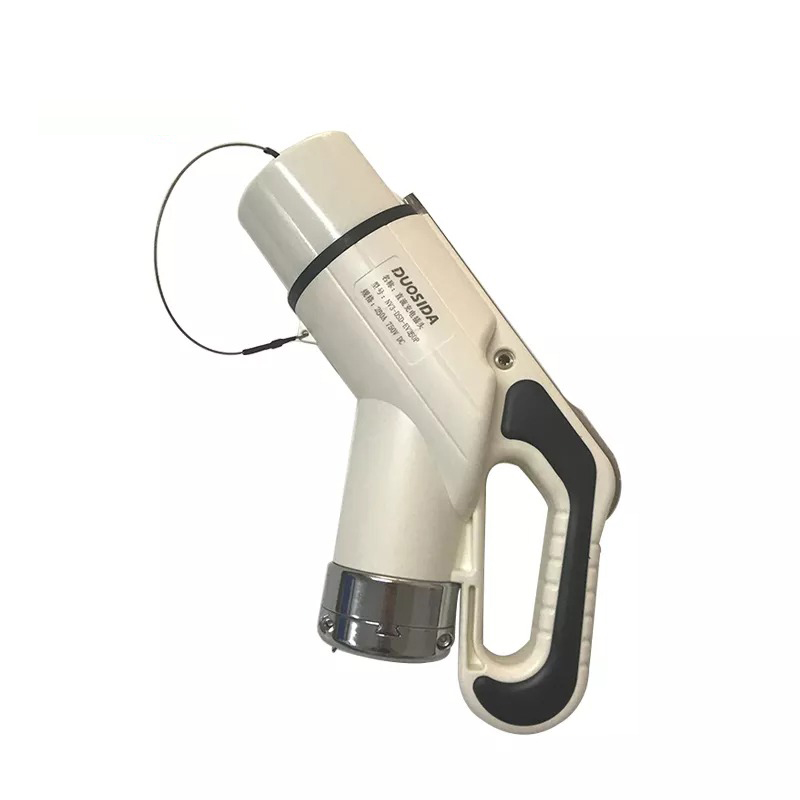

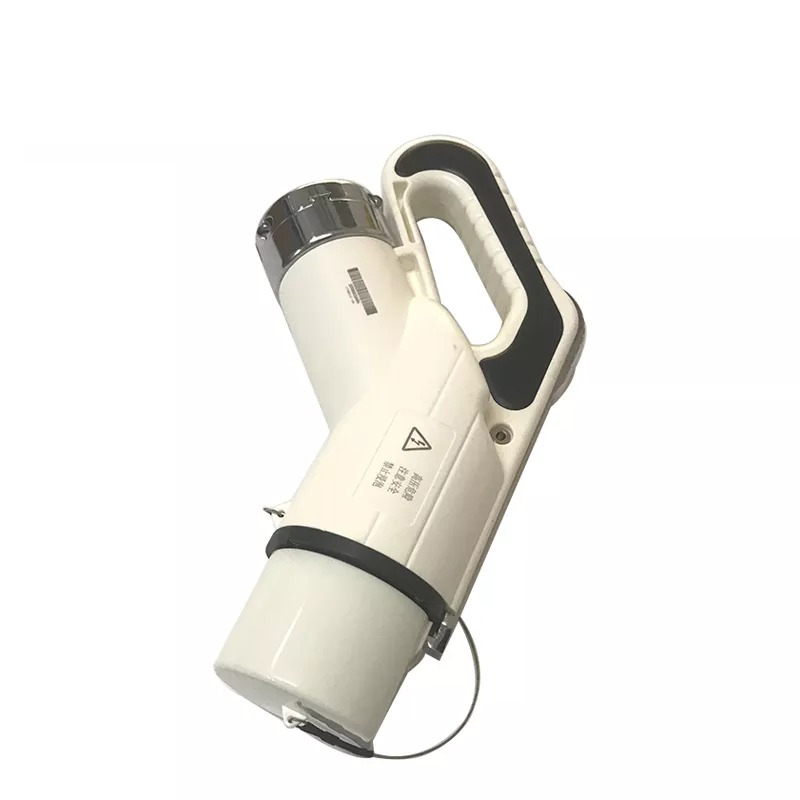

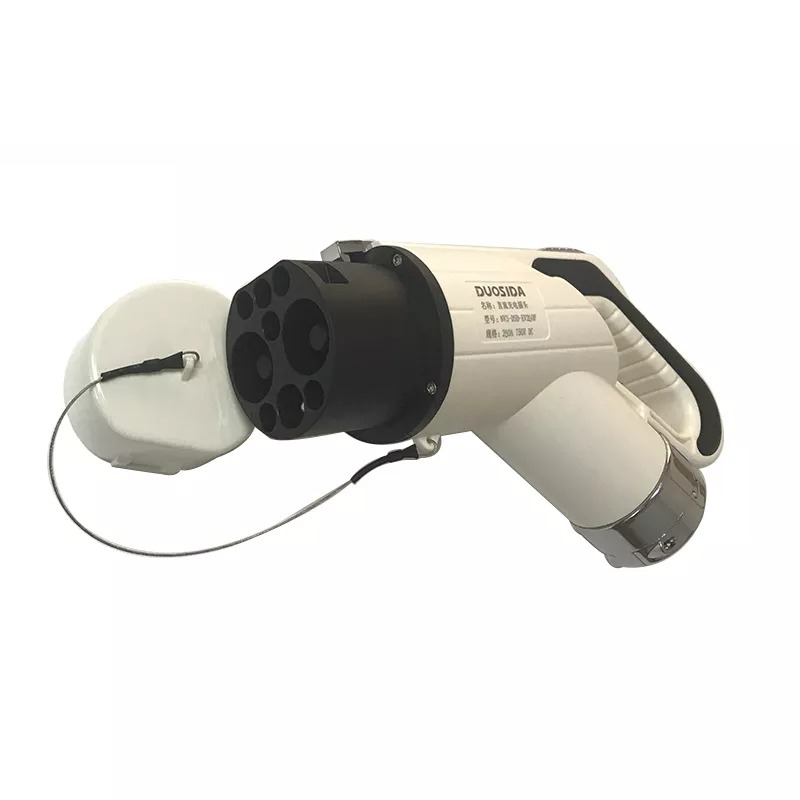

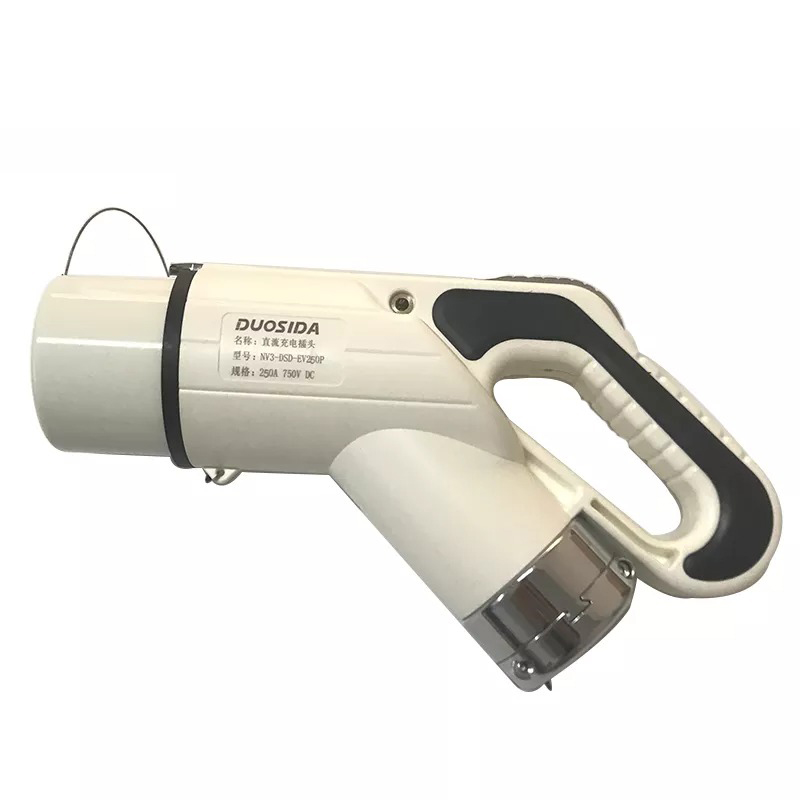

Products Image of DC Plug:
