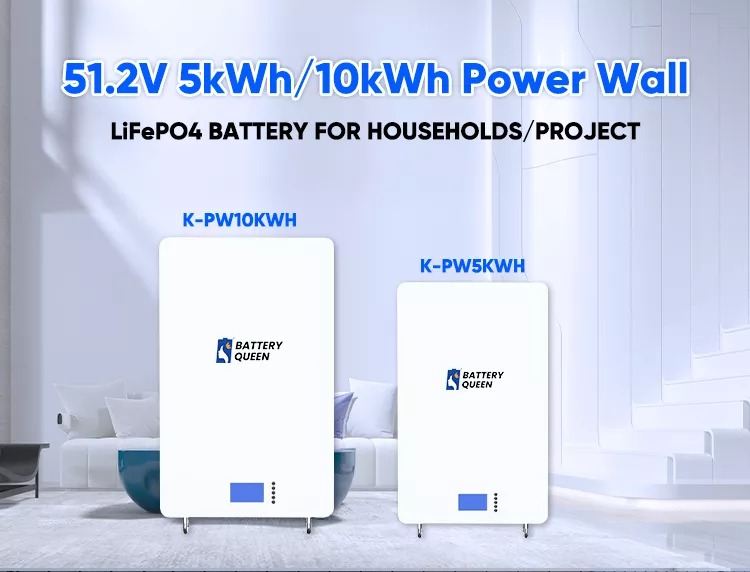

48v lifepo4 100ah 5kw power energy wall Mount solar energy storage lithium ion battery pack
- 2022-11-23 -
|
Item name
|
EU/USA warehouse in stock lifepo4 48V 51.2V 100AH 200AH power wall battery bank with wall plug for home energy storage
|
|
|
Rated voltage
|
51.2V
|
51.2V
|
|
Rated capacity
|
100Ah
|
200Ah
|
|
Max. Charging Current
|
50A
|
100A
|
|
Max. Discharging Current
|
100A
|
200A
|
|
Energy Capacity
|
5.12kWh
|
10.24kWh
|
|
Depth of Discharge (DoD)
|
100%
|
100%
|
|
Operating Voltage Range
|
43.2~57.6V
|
43.2~57.6V
|
|
Internal Resistance
|
≤ 20 mΩ
|
≤ 20 mΩ
|
|
Cycle Life
|
6000 times
|
6000 times
|
|
Scalability
|
max. 16 units in parallel
|
max. 16 units in parallel
|
|
Communication
|
CAN and RS-485 compatible (optional)
|
CAN and RS-485 compatible
|
|
System Weight
|
46kg
|
100kg
|
|
Dimension (W x D x H)
|
360*160*582mm
|
495*200*800mm
|
|
Warranty
|
10 years
|
10 years
|
|
IP Protection
|
IP65
|
IP65
|
|
Relative Humidity
|
15% ~ 85%
|
15% ~ 85%
|
EU/USA warehouse in stock lifepo4 48V 51.2V 100AH 200AH power wall battery bank with wall plug for home energy storage
