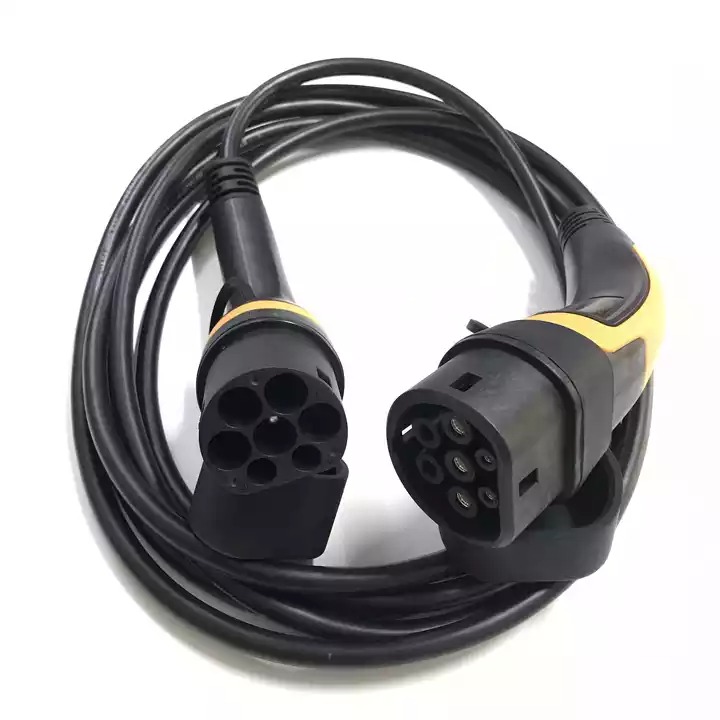

32A Single Phase Type 2 to Type 2 Male to Female ev Charging Cable for Electric Vehicle Plug

- 2022-12-16 -

Product Description
32A Single Phase Type 2 to Type 2 Male to Female ev Charging Cable for Electric Vehicle Plug

11th Anniversary send inquiry can get 5 USD coupon.
11th Anniversary send inquiry can get MULTI METER free if your order more than 1500 USD

Click Below

32A Single Phase Type 2 to Type 2 Male to Female ev Charging Cable for Electric Vehicle Plug
Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance.

Brief Introduction

The IEC 62196 Type 2 connector (commonly referred to as mennekes) is used for charging electric cars within Europe.

Mechanical Properties
Mechanical life
no-load plug> 10000
Insertion force:
<100N
Impact of external force
can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
The rated current
16A,20A,32A
The rated voltage
120V,250V
Insulation resistance
> 1000MΩ (DC500V)
Pins temperature rise
<50K
Withstand voltage
2500V
Contact impedance
0.5mΩ Max

Features

1.Conform to the provisions and requirements of  IEC 62196-2 2016 2-IIb.

2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.

3.XLPO for cable insulation prolonging the aging resistance  life-span, TPU sheath improved the bending life and wear resistance of cable.

4.Excellent protection performance, protection grade achieved IP55 (working condition).

5.Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey).
