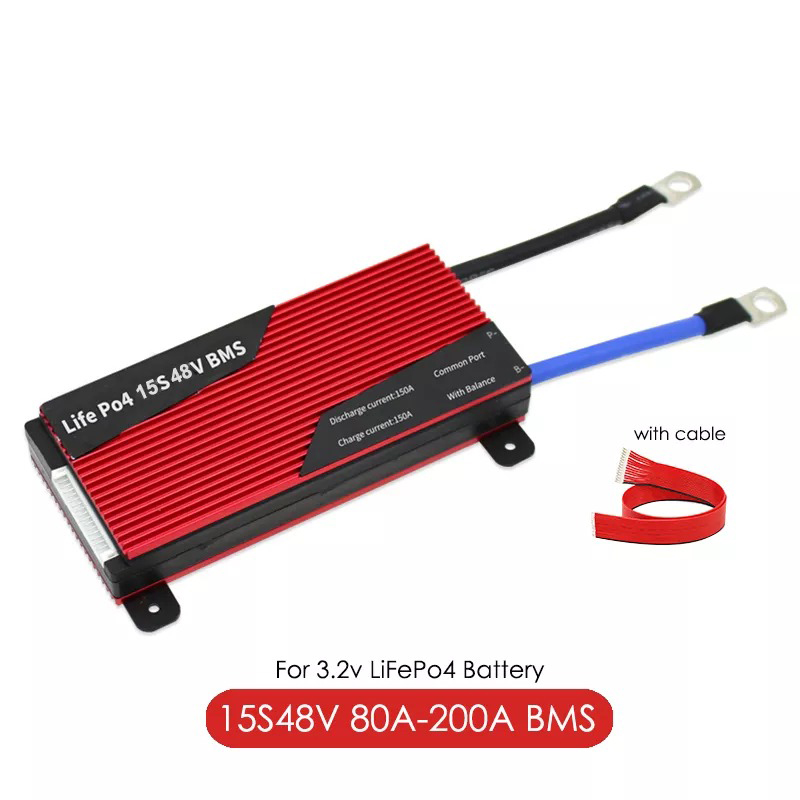

15S lithium battery protection plate 48V 120A 150A electric vehicle tricycle motor cycle lithium iron phosphate 3.2V BMS

- 2022-12-19 -

Product Introduction

15S lithium battery protection plate 48V 120A 150A electric vehicle tricycle motor cycle lithium iron phosphate 3.2V BMS

◆separate port for charge/discharge We can customize any PCB from 1S to 30S lithium batteries with different current.

◆According to the customer request we can develop PCM in different sizes and structures.

◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life
time.

◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.

◆Strong load ability, constant discharge current 10A/25/35A/45A/60A , use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

◆IC itself has power balancing function. The circuit is simple and reliable.

◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

Product Parameters
Name
48V li-ion BMS 15S 100A Protection Board PCM With Balance For Electric Car EBike Scooter Solar for lithium battery
Rated Voltage
Rated/Nominal 3.2V
With Balance
35MV Started when Voltage reach 3.6V
Short Circuit
Yes
Charging Voltage
Series *4.2V
Separate Port
Optional (8A discharging port)
Charge current
80A 120A 150A 200A
Discharge current
70A 110A 140A 190A
Peak Discharge
180A 300A 380A 500A
Custom Service
Logo,current,package,series
