0-200V 100A shunt car battery capacity meter multimeter battery tester

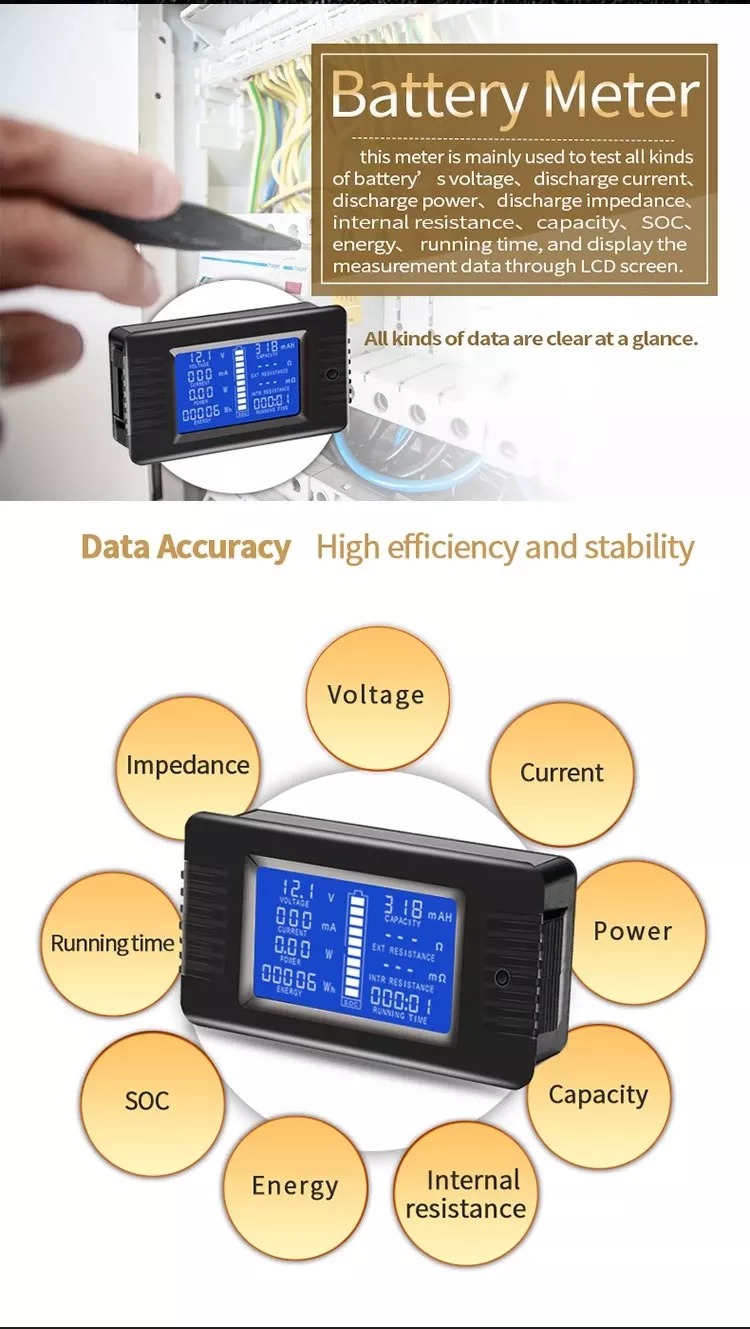

Battery function meter with full view LCD, screw free installation.
This meter is mainly used to test all kinds of battey’s voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, SOC, energy, running time and display the measurement data through LCD screen.
|
Parameter
|
Test Range
|
Resulation
|
Measurement accuracy
|
||
|
Voltage
|
0-200V. (when the test voltage is <8V, please use the independent power supply mode)
|
0.01V
|
1%
|
||
|
Current
|
0-100A
|
1mA
|
1%
|
||
|
Power
|
0-2000W
|
0.01W
|
1%
|
||
|
Impedance
|
0-1000Ω
|
0.1Ω
|
|||
|
Internal Resistance
|
0-999mΩ
|
1mΩ
|
|||
|
Capacity
|
0-1000AH
|
1mAH
|
1%
|
||
|
Dump energy
|
Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
|
||||
|
Accumulate energy consumption
|
0~9999kWh
|
1Wh
|
1%
|
||
|
Running time
|
0 ~ 999 hour(without load the time will not accumulate)
|
||||
